Headlamp Leveler Volkswagen Headlight Adjustment Motor For Vw Golf
Product Details:
| Place of Origin: | Jiangsu , China |
| Brand Name: | OEM/ODM |
| Model Number: | WSD-JG-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box , wooden box and wooden pallet |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 pcs per month |
|
Detail Information |
|||
| Name: | Oem/Odm Headlamp Leveler Headlight Adjustment Motor For Volkswagen Golf 12V /24V | Model: | WSD-JG-18 |
|---|---|---|---|
| Type: | Headlight Adjustment Motor For Volkswagen Golf | Voltage: | 12V /24V |
| Installation （Internal / External）: | External | Operation Function: | ESC |
| Car Model: | Volkswagen Golf | ||
| High Light: | Vw Golf Headlamp Leveler WSD-JG-18,Headlight Adjustment Motor For Vw Golf WSD-JG-18,Volkswagen Headlamp Actuator WSD-JG-18 |
||
Product Description

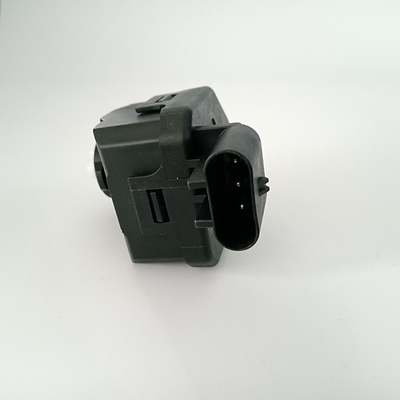

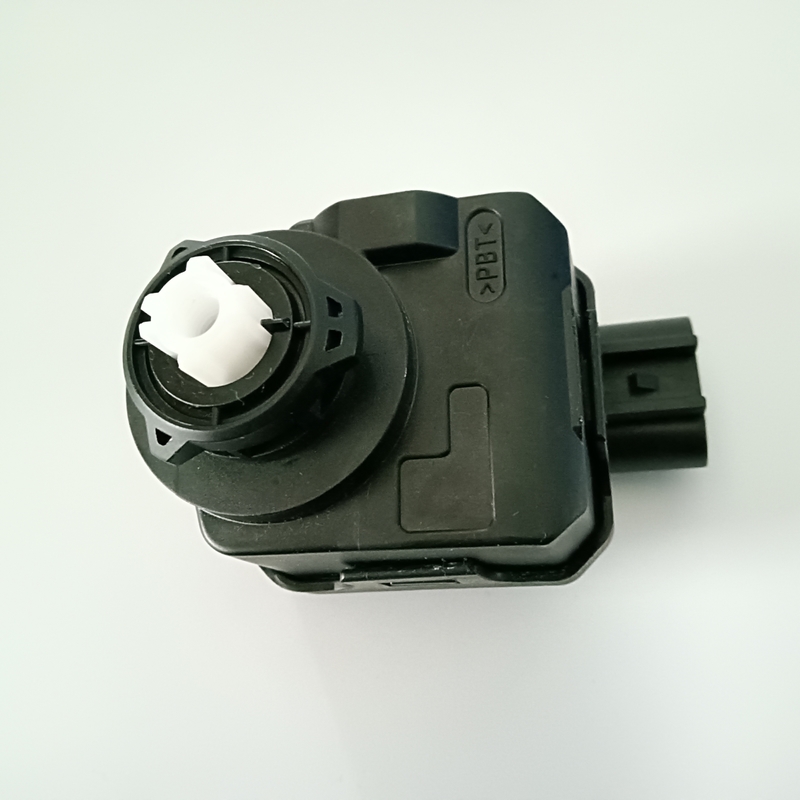

Oem/Odm Headlamp Leveler Headlight Adjustment Motor for Volkswagen Golf 12V /24V
HOW TO DETECT THE HEADLIGHT ADJUSTMENT MOTOR FAILURE
Diagnostics of the headlight adjustment motor can be easily performed on your own. The inspection method is selected depending on the failure nature. If, when switching on the ignition and trying to adjust the headlights, you do not hear the specific buzz, check the supply circuit for integrity. For this, you have to disconnect the wire harness from the component and fix the test probes on its terminals. Then you should switch on the ignition and check the voltage between the appropriate terminals, adjusting the headlights position with the switch situated in the cabin. If a break in the adjuster power supply circuit is not discovered, the component requires replacement.
If the buzzing is heard when you switch on the adjuster, but the light is not adjusted, the teeth of the rod or gear may have been scuffed. But the problem can be not only in the electric motor, but in the jammed headlight reflector.
If the headlight adjuster is operating erratically, you need to disassemble the electric motor. Contact oxidation, wear of graphite tracks, gear teeth and rod indicate that the part requires replacement.
Specification
| Model |
WSD-JG-18 |
| Name | Headlight Adjustment Motor for Volkswagen Golf |
| Voltage | 12V /24V |
| Installation (Internal / External) | External |
| Operation Function | ESC |
| Car Model | Volkswagen Golf |
Product Catalogue
| Model | Voltage | Installation (Internal / External) | Operation Function | Car Model |
| Wsd-Jg-01 | 12v /24v | Internal | ESC | / |
| Wsd-Jg-02 | 12v /24v | Internal | ESC | Manual Headlight Adjuster |
| Wsd-Jg-03 | 12v /24v | Internal | ESC | Faw Heavy Trucks |
| Wsd-Jg-04 | 12v /24v | Internal | Manual/ESC | / |
| Wsd-Jg-05 | 12v /24v | External | Manual/ESC | KIA |
| Wsd-Jg-06 | 12v /24v | External | Manual/ESC | Dongfeng Light Truck |
| Wsd-Jg-07 | 12v /24v | External | Manual/ESC | Hyundai |
| Wsd-Jg-08 | 12v /24v | External | Manual/ESC | Dfac Light Truck |
| Wsd-Jg-09 | 12v /24v | External | Manual/ESC | Honda |
| Wsd-Jg-10 | 12v /24v | External | Manual/ESC | Nissan |
| Wsd-Jg-11 | 12v /24v | External | Manual/ESC | / |
| Wsd-Jg-12 | 12v /24v | External | Manual/ESC | Headlight Regulator |
| Wsd-Jg-13 | 12v | Internal | Manual/ESC | Citroen/Ford/Mondeo |
| Wsd-Jg-14 | 12v /24v | Internal | ESC | Volkswagen/Vw |
| Wsd-Jg-15 | 12v /24v | Internal | ESC | Volkswagen/Vw |
| Wsd-Jg-16 | 12v /24v | Internal | ESC | / |
| Wsd-Jg-17 | 12v /24v | External | ESC | Fengjun |
| Wsd-Jg-18 | 12v /24v | External | ESC | Volkswagen Golf |
| Wsd-Jg-19 | 12v /24v | External | Manual/ESC | Citroen |
| Wsd-Jg-20 | 12v /24v | External | Manual/ESC | Toyota/Nissan |
| Wsd-Jg-21 | 12v /24v | External | Manual/ESC | Toyota/Nissan |
| Wsd-Jg-22 | 12v /24v | External | ESC | Camry/Toyota |
| Wsd-Jg-23 | 12v /24v | External | ESC | Mondeo |
| Wsd-Jg-24 | 12v /24v | External | Manual/ESC | / |
| Wsd-Jg-25 | 12v /24v | Internal | ESC | Volkswagen/Vw |
| Wsd-Jg-26 | 12v | External | ESC |
Charging Cover Switch Motor |
| / | / | / | / | Mazda |
| / | / | / | / | Vw Sagitar |
FAQ
Q1: Are you a factory or trading company?
A: We are manufacturer of headlight adjustment motor , we have our own factory. Our headlight adjustment motor support Faw Heavy Trucks/Dongfeng Light Truck/Hyundai/Honda/Citroen/Ford/Mondeo/Fengjun/Golf/Citroen/Toyota/Nissan/Camry/Mondeo/Volkswagen/Vw/Mazda/Vw Sagitar etc.
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: Can I visit you?
Yes, warmly welcome to visit our factory in Jiangsu province.
Q7: Do you offer OEM production?
We are happy to receive any inquiry of customer special design. If you have any new design to develop or you have some parts couldn't find the existing production in China, welcome to contact us!
